Asynchronous TCP, UDP and HTTP
Nothing travels faster than the speed of light, with the possible exception of bad news, which obeys its own special laws.
Mostly Harmless (1992)
import reactor.ipc.netty.tcp.TcpServer;
import reactor.ipc.netty.tcp.TcpClient;
//...
CountDownLatch latch = new CountDownLatch(10);
TcpServer server = TcpServer.create(port);
TcpClient client = TcpClient.create("localhost", port);
final JsonCodec<Pojo, Pojo> codec = new JsonCodec<Pojo, Pojo>(Pojo.class);
//the client/server are prepared
server.start( input ->
//for each connection echo any incoming data
//return the write confirm publisher from send
// >>> close when the write confirm completed
input.send(
//read incoming data
input
.decode(codec) //transform Buffer into Pojo
.log("serve")
.map(codec) //transform Pojo into Buffer
, 5) //auto-flush every 5 elements
).await();
client.start( input -> {
//read 10 replies and close
input
.take(10)
.decode(codec)
.log("receive")
.subscribe( data -> latch.countDown() );
//write data
input.send(
Flux.range(1, 10)
.map( it -> new Pojo("test" + it) )
.log("send")
.map(codec)
).subscribe();
//keep-alive, until 10 data have been read
return Mono.never();
}).await();
latch.await(10, TimeUnit.SECONDS);
client.shutdown().await();
server.shutdown().await();Overview

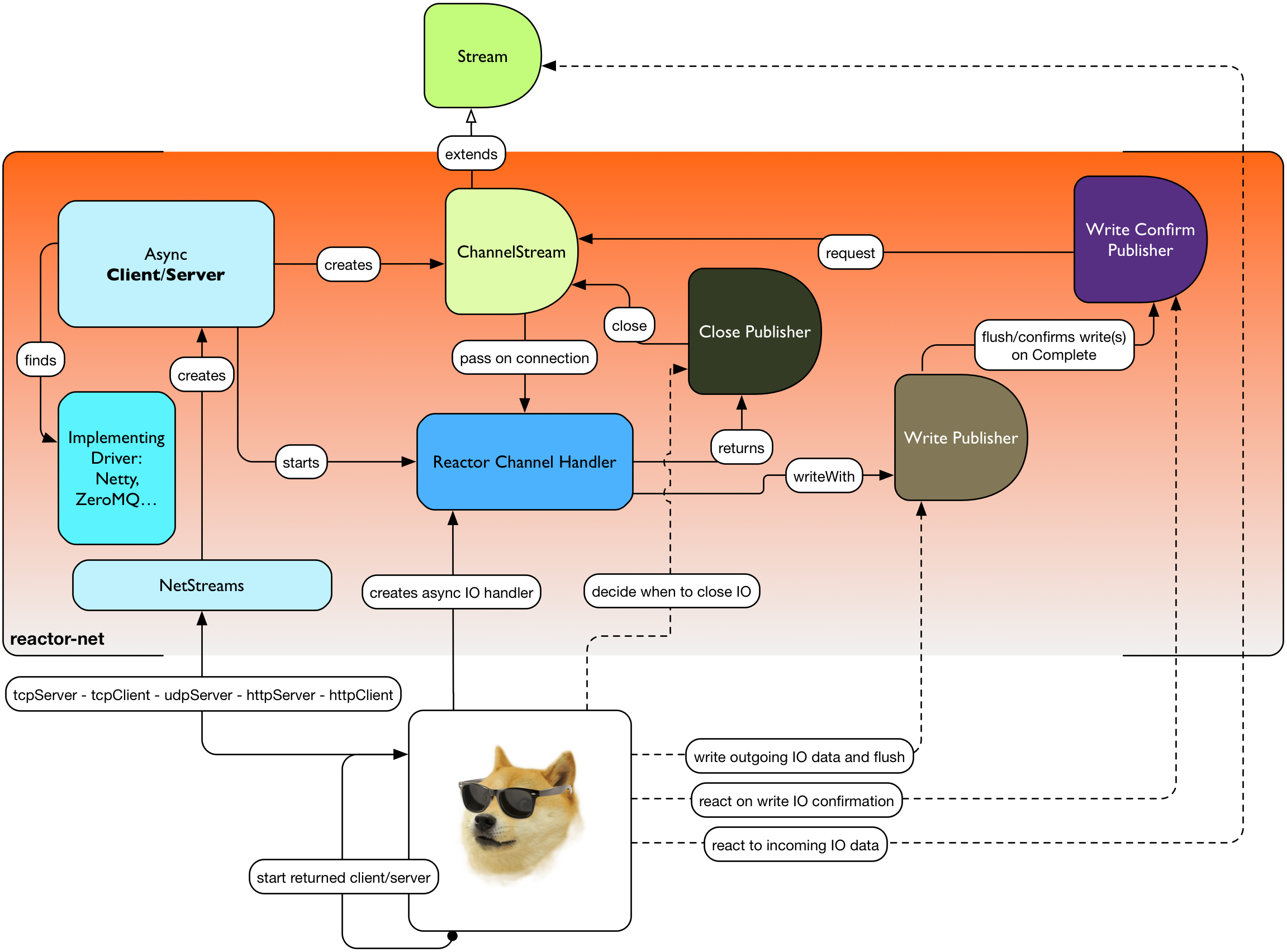

How is Reactor Net module working ?
So why should you care about an asynchronous runtime to deal with network operations ? As seen in the Microservice with Streams section, it is preferred to not block for a service reply. Non-Blocking write over network will slightly be more costly than blocking ones in terms of resources, however it might be perceived more responsive to the producer. Responsiveness all along the request flow impacts various systems and eventually, 1 or N users waiting their turn to push new requests.
Blocking Read or Write become more like a nightmare for concurrent services use over long-living connections such as TCP or WebSocket. Apart from network routing component which might timeout a too long connection, little can be done with a blocking socket in the application locking the thread on read or write IO methods.
Of course there is always the choice to provide for a pool of threads or any Async Facade such as a Core Processor to mitigate the blocking read/write contention. The problem is there won’t be many of these threads available in a Reactive world of non blocking dispatching, so blocking behind 4/8/16 async facades is a limited option. Again the thread pool with a large queue or even many threads won’t necessarely solve the situation neither.
Reactor Net aims to provide an Asynchronous IO runtime that supports Reactive Streams backpressure for client or server needs over a range of protocols and drivers. Some drivers will not implement every protocol but at least one, Netty, implements all current protocols. At the moment, Reactor Net is supporting Netty 4.x and ZeroMQ through jeroMQ 0.3.+ and you must add explicitely one of them in the application classpath.
Reactor Net has the following artifacts:
| Reactor Net implements a model discussed under the Reactive IPC initiative. As we progress we will align more and eventually depend on the specified artefacts likely over 2016. We give you a chance to experiment as of today with some of the principles and make our best to prepare our users to this next-generation standard. |
Channels
Channel Handlers
Specifications
Client Specification
Server Specification
Backpressure
Using Reactor and Reactive Stream standard for flow-control with TCP network peers.
TCP 101
Using Reactor’s TCP support to create high-performance TCP clients and servers.
Start and Stop
Writing Data
From a Server perspective
From a Client perspective
Flushing Strategies
Consuming Data
From a Server perspective
From a Client perspective
Backpressure Strategies
Closing the Channel
HTTP 101
Using Reactor’s HTTP support to create high-performance HTTP clients and servers.
