In this section, we will review a sample application that is included in the Spring Integration Milestone 1 release. This sample is inspired by one of the samples featured in Gregor Hohpe's Ramblings.

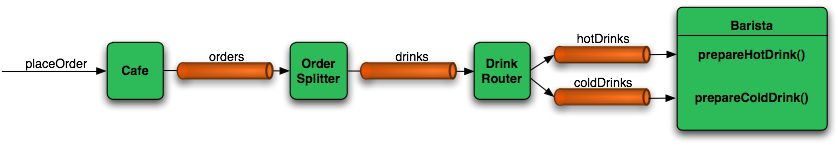

The domain is that of a Cafe, and the basic flow is depicted in the following diagram:

The DrinkOrder object may contain multiple Drinks. Once the order is placed, a Splitter will break the composite order message into a single message per drink. Each of these is then processed by a Router that determines whether the drink is hot or cold (checking the Drink object's 'isIced' property). Finally the Barista prepares each drink, but hot and cold drink preparation are handled by two distinct methods: 'prepareHotDrink' and 'prepareColdDrink'.

Here is the XML configuration:

<beans:beans xmlns="http://www.springframework.org/schema/integration"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xmlns:beans="http://www.springframework.org/schema/beans"
             xmlns:context="http://www.springframework.org/schema/context"
             xsi:schemaLocation="http://www.springframework.org/schema/beans
                                 http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
                                 http://www.springframework.org/schema/integration
                                 http://www.springframework.org/schema/integration/spring-integration-1.0.xsd
                                 http://www.springframework.org/schema/context
                                 http://www.springframework.org/schema/context/spring-context-2.5.xsd">

    <message-bus/>
    <annotation-driven/>

    <context:component-scan base-package="org.springframework.integration.samples.cafe"/>

    <channel id="orders"/>
    <channel id="drinks"/>
    <channel id="coldDrinks"/>
    <channel id="hotDrinks"/>

    <endpoint input-channel="coldDrinks" handler-ref="barista" handler-method="prepareColdDrink"/>
    <endpoint input-channel="hotDrinks" handler-ref="barista" handler-method="prepareHotDrink"/>

    <beans:bean id="cafe" class="org.springframework.integration.samples.cafe.Cafe">
        <beans:property name="orderChannel" ref="orders"/>
    </beans:bean>

</beans:beans>

Notice that the Message Bus is defined. It will automatically detect and register all channels and endpoints. The 'annotation-driven' element will enable the detection of the splitter and router - both of which carry the @MessageEndpoint annotation. That annotation extends Spring's "stereotype" annotations (by relying on the @Component meta-annotation), and so all classes carrying the endpoint annotation are capable of being detected by the component-scanner.

@MessageEndpoint(input="orders")
public class OrderSplitter {

    @Splitter(channel="drinks")
    public List<Drink> split(DrinkOrder order) {
        return order.getDrinks();
    }
}

@MessageEndpoint(input="drinks")
public class DrinkRouter {

    @Router
    public String resolveDrinkChannel(Drink drink) {
        return (drink.isIced()) ? "coldDrinks" : "hotDrinks";
    }
}

Now turning back to the XML, you see that there are two <endpoint> elements. Each of these is delegating to the same Barista instance but different methods. The 'barista' could have been defined in the XML, but instead the @Component annotation is applied:

@Component
public class Barista {

    private long hotDrinkDelay = 1000;
    private long coldDrinkDelay = 700;

    private AtomicInteger hotDrinkCounter = new AtomicInteger();
    private AtomicInteger coldDrinkCounter = new AtomicInteger();

    public void setHotDrinkDelay(long hotDrinkDelay) {
        this.hotDrinkDelay = hotDrinkDelay;
    }

    public void setColdDrinkDelay(long coldDrinkDelay) {
        this.coldDrinkDelay = coldDrinkDelay;
    }

    public void prepareHotDrink(Drink drink) {
        try {
            Thread.sleep(this.hotDrinkDelay);
        } catch (InterruptedException e) {
            Thread.currentThread().interrupt();
        }
        System.out.println("prepared hot drink #" + hotDrinkCounter.incrementAndGet() + ": " + drink);
    }

    public void prepareColdDrink(Drink drink) {
        try {
            Thread.sleep(this.coldDrinkDelay);
        } catch (InterruptedException e) {
            Thread.currentThread().interrupt();
        }
        System.out.println("prepared cold drink #" + coldDrinkCounter.incrementAndGet() + ": " + drink);
    }
}

As you can see from the code excerpt above, the barista methods have different delays. This simulates work being completed at different rates. When the CafeDemo 'main' method runs, it will loop 100 times sending a single hot drink and a single cold drink each time.

public static void main(String[] args) {
    AbstractApplicationContext context = null;
    if(args.length > 0) {
        context = new FileSystemXmlApplicationContext(args);
    }
    else {
        context = new ClassPathXmlApplicationContext("cafeDemo.xml", CafeDemo.class);
    }
    context.start();
    Cafe cafe = (Cafe) context.getBean("cafe");
    DrinkOrder order = new DrinkOrder();
    Drink hotDoubleLatte = new Drink(DrinkType.LATTE, 2, false);
    Drink icedTripleMocha = new Drink(DrinkType.MOCHA, 3, true);
    order.addDrink(hotDoubleLatte);
    order.addDrink(icedTripleMocha);
    for (int i = 0; i < 100; i++) {
        cafe.placeOrder(order);
    }
}

To run this demo, go to the "samples" directory within the root of the Spring Integration distribution. On Unix/Mac you can run 'cafeDemo.sh', and on Windows you can run 'cafeDemo.bat'. Each of these will by default create a Spring ApplicationContext from the 'cafeDemo.xml' file that is in the "spring-integration-samples" JAR and hence on the classpath (it is the same as the XML above). However, a copy of that file is also available within the "samples" directory, so that you can provide the file name as a command line argument to either 'cafeDemo.sh' or 'cafeDemo.bat'. This will allow you to experiment with the configuration and immediately run the demo with your changes. It is probably a good idea to first copy the original file so that you can make as many changes as you want and still refer back to the original to compare.

When you run cafeDemo, you will see that all 100 cold drinks are prepared in roughly the same amount of time as only 70 of the hot drinks. This is to be expected based on their respective delays of 700 and 1000 milliseconds. However, by configuring the endpoint concurrency, you can dramatically change the results. For example, on my machine, the following single modification causes all 100 hot drinks to be prepared before the 4th cold drink is ready:

<endpoint input-channel="coldDrinks" handler-ref="barista" handler-method="prepareColdDrink"/>

<endpoint input-channel="hotDrinks" handler-ref="barista" handler-method="prepareHotDrink">
    <concurrency core="25" max="50"/>
</endpoint>

In addition to experimenting with the 'concurrency' settings, you can also try adding the 'schedule' sub-element as described in the section called “Configuring Message Endpoints”. Additionally, you can experiment with the channel's configuration, such as adding a 'dispatcher-policy' as described in the section called “Configuring Message Channels”. If you want to explore the sample in more detail, the source JAR is available in the "dist" directory: 'spring-integration-samples-sources-1.0.0.m1.jar'.
