The final step in the migration is that of a full blown OSGi application with web support. The SpringSource dm Server introduces a new packaging and deployment format: the PAR. A PAR is a standard JAR with a ".par" file extension which contains all of the modules of your application (e.g., service, domain, and infrastructure bundles as well as a WAR for web applications) in a single deployment unit. Moreover, a PAR defines both a physical and logical application boundary.

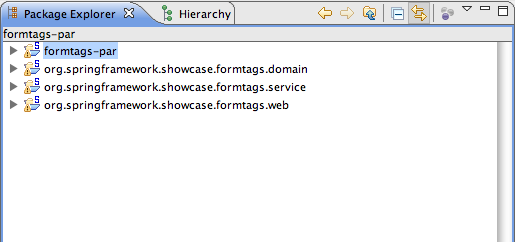

The PAR sample is comprised of four directories, as shown below.

The formtags-par directory is a build project that understands how to create the PAR from its constituent bundles.

Granularity of the PAR

Achieving the appropriate level of granularity for your OSGi application is more of an art than a science. It helps to look at the different requirements:

Table 6.1. Granularity drivers

Requirement	Description
Domain/Technical Layering	Applications can be split either by domain (i.e., by use case or vertically) or by their technical layers (i.e., horizontally). Since the Form Tags application essentially has only a single use case, the bundles are split by technical layering (i.e., domain, service, and web).
Refreshability	A major benefit of OSGi is that of refreshability: if one bundle is changed, only bundles that have a dependency upon the exported types need to be refreshed. This has a high impact on development time costs as well as production costs. However, this can lead to lots of smaller, fine grained bundles. An example of this granularity would be to separate out the service API and implementation into two different bundles. This means that a change in the implementation wouldn't require any other bundles to be refreshed.

Requirement

Description

Domain/Technical Layering

Applications can be split either by domain (i.e., by use case or vertically) or by their technical layers (i.e., horizontally). Since the Form Tags application essentially has only a single use case, the bundles are split by technical layering (i.e., domain, service, and web).

Refreshability

A major benefit of OSGi is that of refreshability: if one bundle is changed, only bundles that have a dependency upon the exported types need to be refreshed. This has a high impact on development time costs as well as production costs. However, this can lead to lots of smaller, fine grained bundles. An example of this granularity would be to separate out the service API and implementation into two different bundles. This means that a change in the implementation wouldn't require any other bundles to be refreshed.

Ultimately the right level of granularity will depend upon your particular application and team.

	Note
	This topic will be revisited in greater detail later in the Programmer Guide in a chapter covering how to build a PAR from scratch.

Domain and Service Bundles

The service bundle is identical (except for the Bundle-SymbolicName) to that in the shared-services variation of the sample. The PAR has also separated out the domain classes into their own bundle. When layering by technical considerations, it is again somewhat of an unofficial convention to have a .domain bundle.

Constructing the PAR

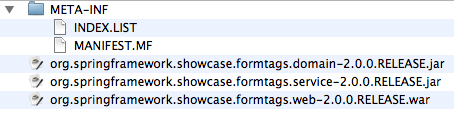

Finally we need to construct the PAR itself. The following are the contents of the exploded PAR.

You can see that the PAR itself doesn't contain any resources or Java classes: it simply packages together a related set of bundles as a single, logical unit.

The PAR does however, contain its own /META-INF/MANIFEST.MF.

Manifest-Version: 1.0
Application-SymbolicName: org.springframework.showcase.formtags-par
Application-Version: 1.0.0
Application-Name: FormTags Showcase Application (PAR)

For more information on the contents of the PAR's /META-INF/MANIFEST.MF, please consult Chapter 4, Developing Applications.

You can now deploy the PAR on the dm Server, for example by copying /dist/formtags-par*.par to the dm Server's pickup directory. You should then see console output similar to the following:

	Note
	The console output has been reformatted to fit this document.

[2009-07-01 15:13:43.306] fs-watcher
    <SPDE0048I> Processing 'CREATED' event for file 'formtags-par-2.0.0.RELEASE.par'.
[2009-07-01 15:13:44.060] fs-watcher
    <SPDE0010I> Deployment of 'formtags-par' version '2.0.0.RELEASE' completed.
[2009-07-01 15:13:44.068] Thread-20
    <SPWE0000I> Starting web bundle '/formtags-par'.
[2009-07-01 15:13:45.212] Thread-20
    <SPWE0001I> Started web bundle '/formtags-par'.

Navigate to http://localhost:8080/formtags-par to see the welcome page.

	Tip
	Note that the web application's context path is explicitly defined via the `Web-ContextPath` manifest header in `/META-INF/MANIFEST.MF` of the web module within the PAR.
